Switchcraft EH Mini-USB Feedthru Connectors
Switchcraft EH Mini-USB Feedthru Connectors add a mini-USB option to the traditional EH Panel Mount connectors. EH products feature audio, video, and data connectors built into standard panel-mount XLR housings. The single-port Switchcraft EH Mini-USB Feedthru Connectors feature a black housing with copper alloy and gold-plated contacts.
Specifications
- 5 contacts
- Singe port
- Straight panel mount style
- Thermoplastic, black insulator
- Copper alloy, gold-plated contacts
- Thermoplastic, black EH housing
- Copper alloy, nickel-plated shell

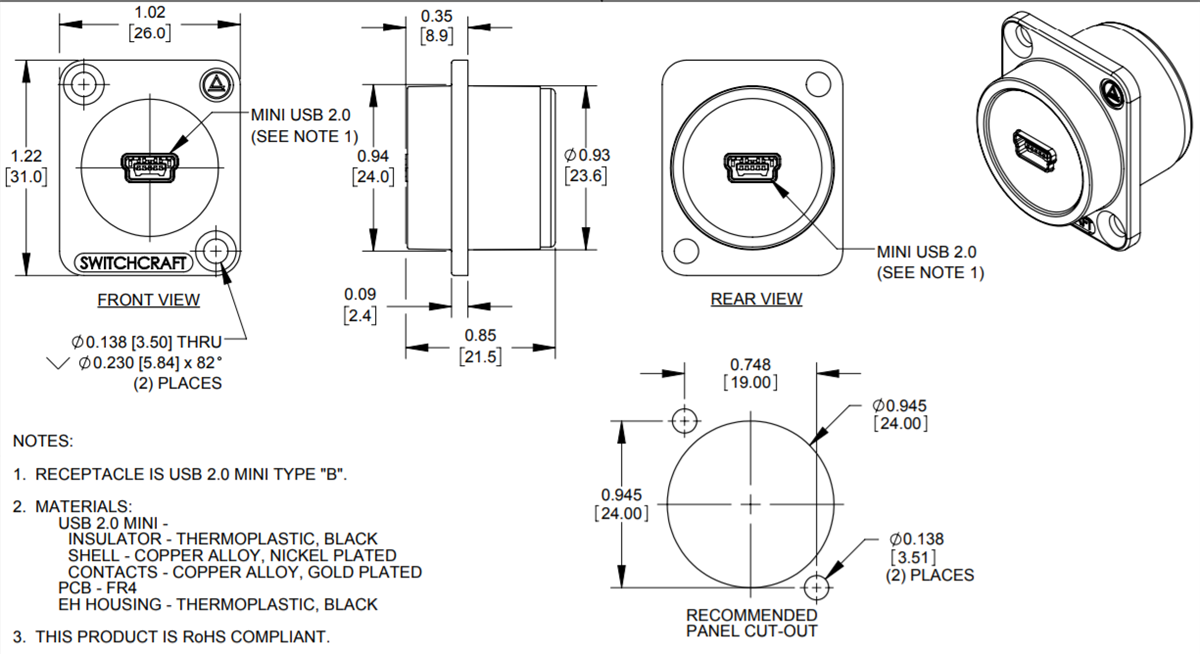

Dimensions
View Results ( 16 ) Page
| หมายเลขชิ้นส่วน | เอกสารข้อมูลสินค้า | สินค้า | มาตรฐาน | เทคนิคการชุบจุดเชื่อม | สีของฉนวน |
|---|---|---|---|---|---|
| EHUSBMNMN |  |
Mini USB Type B Connectors | USB 2.0 | Gold | Black |
| EHUSBMNMNPKG | |
Mini USB Type B Connectors | USB 2.0 | Gold | Black |
| EHUSBABBX | |
USB Adapters | Black | ||
| EHUSBABX | |
USB Adapters | Nickel | Black | |
| EHUSBBAX | |
USB Adapters | Nickel | Nickel | |
| EHUSBBABX | |
USB Adapters | Black | ||
| EHUSB3ACAB | |
USB Adapters | USB 3.0 | Gold | Black |
| EHUSB3CABA | |
USB Couplers | USB 3.0 | Gold | Black |
| EHUSBAAX | |
USB Couplers | USB 2.0 | Nickel | |
| EHUSBABBXPKG | |
USB Adapters | Black |
