Semtech SX1508 & SX1509 Evaluation Kits

Semtech SX1508/09 Evaluation Kits provide an evaluation platform for the SX1507/8/9 family of Ultra-Low Voltage Level-Shifting GPIOs with LED drivers and keypad engines. The GPIOs connect directly with low core voltage baseband chipsets in battery-powered, handheld applications avoiding level translating circuits, minimizing cost and board space.

Kit Contents

  • SX1508EVK or SX1509EVK board
  • SX1508EVK or SX1509EVK CDROM including all necessary PC software and documentation (requires Windows XP minimum)
  • Mini USB cable to connect the board to the PC

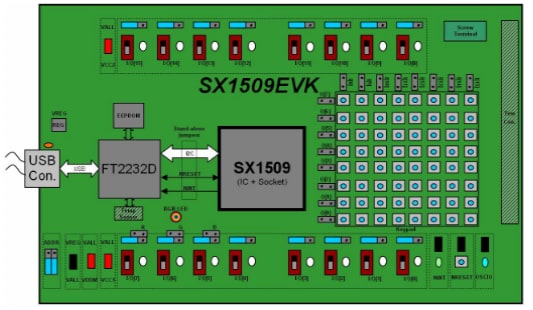

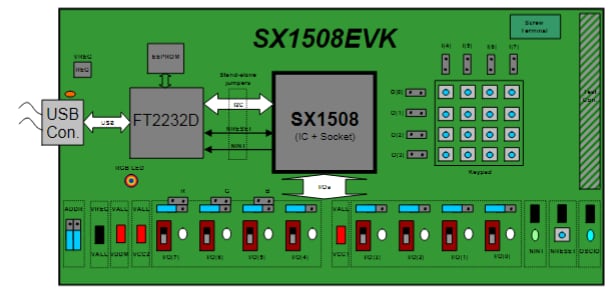

SX1508 and SX1509 Board Overview

Block Diagram - Semtech SX1508 & SX1509 Evaluation Kits
Block Diagram - Semtech SX1508 & SX1509 Evaluation Kits

Related GPIOs

Semtech SX1508B & SX1509B Ultra-Low Voltage GPIOs

Ideal for low power handheld battery-powered equipment.

Learn Moreเกี่ยวกับ Semtech SX1508B & SX1509B Ultra-Low Voltage GPIOs View Productsเกี่ยวข้องกับ Semtech SX1508B & SX1509B Ultra-Low Voltage GPIOs
