NKK Switches AT300x Knobs
NKK Switches AT300x Knobs are designed for use with the NR01 Series Sealed Rotary Switches. These knobs are available with and without flanges and come in a black, red, and gray color variants. In order to avoid disassembling of the knobs from the switches, it is advisable to use the knobs with the flanges.
Features
- Designed for use with the NR01 Series Sealed Rotary Switches
- Glass fiber reinforced polyamide material
- Available with (9.5mm) or without (7.5mm) flange
- Available in black, red, or gray
Associated Product
NKK Switches NR01 Series Sealed Rotary Switches
Subminiature rotary switches with sliding dual-contact mechanism and available up to 5 positions.

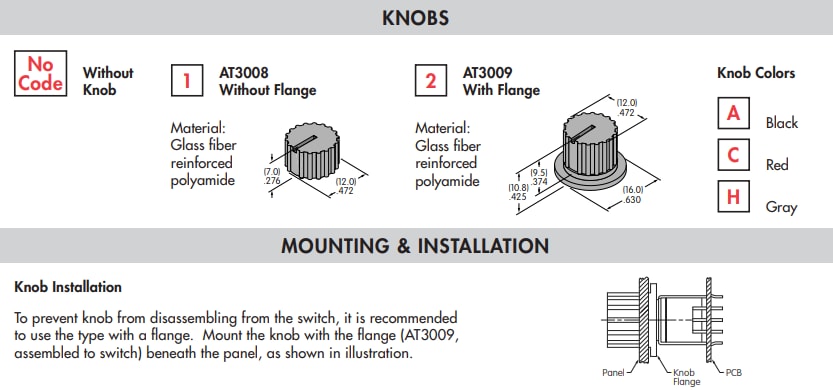

Knobs Dimensions
View Results ( 36 ) Page
| หมายเลขชิ้นส่วน | เอกสารข้อมูลสินค้า | ความสูง | สี | สำหรับใช้ร่วมกับ |
|---|---|---|---|---|
| AT3001CB |  |
12.2 mm | Red, Black | Pushbutton Switches |
| AT3001EB | |
12.2 mm | Yellow, White | Pushbutton Switches |
| AT3001FB | |
12.2 mm | Green, White | Pushbutton Switches |
| AT3002A | |
12.2 mm | Black | Pushbutton Switches |
| AT3002EB | |
12.2 mm | Yellow, White | Pushbutton Switches |
| AT3002GB | |
12.2 mm | Blue, White | Pushbutton Switches |
| AT3003CB | |
12.2 mm | Red, White | Pushbutton Switches |
| AT3003FB | |
12.2 mm | Green, White | Pushbutton Switches |
| AT3004JC | |
12.2 mm | Clear, Red | Pushbutton Switches |
| AT3005JC | |
12.2 mm | Clear, Red | Pushbutton Switches |
เผยแพร่แล้ว: 2560-08-17
| อัปเดตแล้ว: 2565-07-14
