Mini-Circuits TB-ADT1 Evaluation Board

Mini-Circuits TB-ADT1 Evaluation Board evaluates the ADT1 SMT RF Transformers. The ADT1 RF transformers are aqueous washable audio transformers with excellent amplitude and phase unbalance ratings. The Mini-Circuits TB-ADT1 eval board features SMA female connectors and is ideal for impedance matching, baluns, balanced amplifiers, and high-speed data communication applications.

Features

  • Evaluates the ADT1 RF transformers
  • SMA female connectors
  • Rogers RO4350 PCB material
  • 50Ω impedance

Schematic

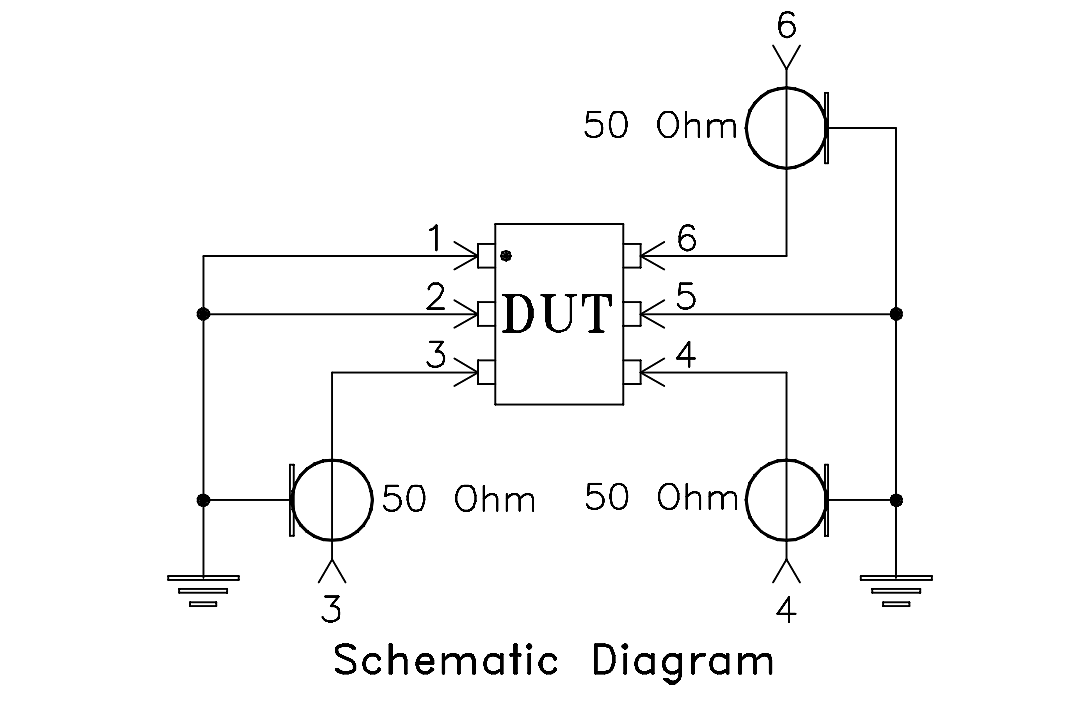

Schematic - Mini-Circuits TB-ADT1 Evaluation Board

Related Transformers

Mini-Circuits ADT1 SMT RF Transformers

Features an aqueous washable audio transformer with excellent amplitude and phase unbalance ratings.
