IXYS X3-Class HiPerFET™ Power MOSFETs

IXYS X3-Class HiPerFET™ Power MOSFETs are N-channel, enhancement mode, avalanche-rated MOSFETs. The X3-Class provides high power density and is easy to mount, all in a space-saving package. The IXYS X3-Class MOSFETs are ideal for switch-mode and resonant-mode power supplies.

Features

  • International standard package
  • Low RDS(ON) and QG
  • Avalanche rated
  • Low package inductance

Applications

  • Switch-mode and resonant-mode power supplies
  • DC-DC converters
  • PFC circuits
  • AC and DC motor drives
  • Robotics and servo controls

Associated MOSFETs

IXYS X-Class Power MOSFETs

Easy-to-mount high-power density N-Channel Enhancement Mode MOSFETs with a low RDS(ON) and QG.

Learn Moreเกี่ยวกับ IXYS X-Class Power MOSFETs View Productsเกี่ยวข้องกับ IXYS X-Class Power MOSFETs

IXYS X3-Class Power MOSFETs with HiPerFET™

Avalanche-rated fast intrinsic diodes with N-channel enhancement mode.

Learn Moreเกี่ยวกับ IXYS X3-Class Power MOSFETs with HiPerFET™ View Productsเกี่ยวข้องกับ IXYS X3-Class Power MOSFETs with HiPerFET™

IXYS HiPerFET™ Power MOSFETs

High-current HiPerFET™ power MOSFETs for hard switching & resonant mode applications.

Learn Moreเกี่ยวกับ IXYS HiPerFET™ Power MOSFETs View Productsเกี่ยวข้องกับ IXYS HiPerFET™ Power MOSFETs

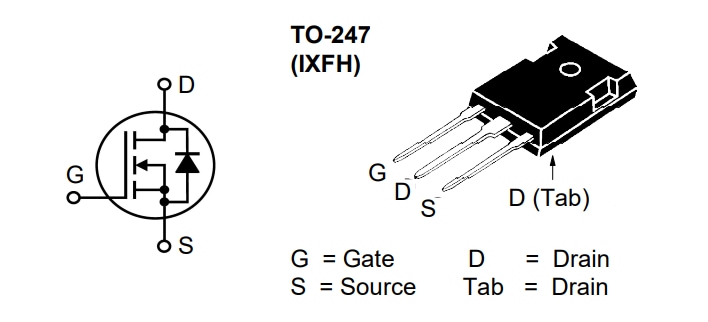

TO-247 (IXFH) Package Style

Application Circuit Diagram - IXYS X3-Class HiPerFET™ Power MOSFETs

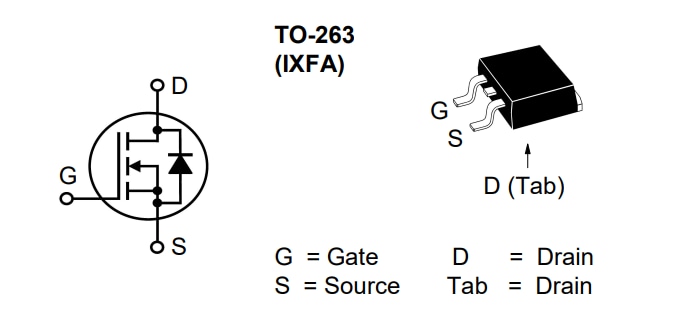

TO-263 (IXFA) Package Style

Application Circuit Diagram - IXYS X3-Class HiPerFET™ Power MOSFETs
