Hirose Electric High Speed Board to Board Connectors
Hirose Electric produces a variety of High-Speed Board to Board Connectors. These High-Speed Board to Board Connectors are ideal for mezzanine applications, coplanar or vertical, with optional ground plates, and a wide range of positions and stacking heights. Hirose Connectors include the FX10, FX11, FX18, and IT3 series connectors.

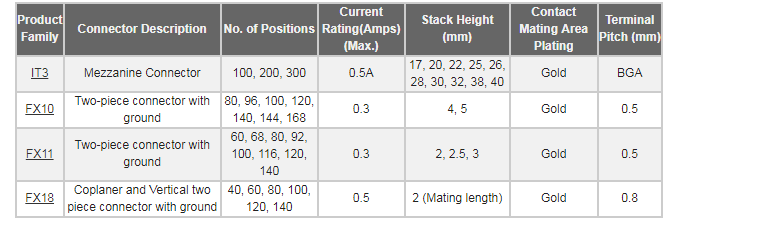

Product Matrix
Associated Products
Hirose Electric FX10 B2B Connectors with Ground Plate
Optional ground plate reduces noise, 0.5mm pitch, 4mm/5mm height.
Hirose Electric FX18 Hi-Speed B2B Connectors
0.8mm pitch, coplanar or vertical, up to 10Gbps, MF contact.
Hirose Electric FX11 B2B Connectors with Ground Plate
0.5mm pitch headers and receptacles with optional ground plates on both sides.
Hirose Electric IT3 High-Speed BGA Mezz Connectors
Transmits differential, single-ended, and power; stackable from 15-40mm.
Product Catalogs
View Results ( 260 ) Page
| หมายเลขชิ้นส่วน | เอกสารข้อมูลสินค้า | คำอธิบาย | ระดับ |
|---|---|---|---|
| FX11LB-140S-SV(21) |  |
Board to Board & Mezzanine Connectors REC 140POS W/O POSTS SMT | FX11 |
| FX18-40S-0.8SH | |
Board to Board & Mezzanine Connectors 0.8MM 40P RCPT R/A SMT | FX18 |
| FX11LA-100P/10-SV(91) | |
Board to Board & Mezzanine Connectors 100P M HDR STRT SMT GIDE POST GROUND PLT | FX11 |
| FX11LA-120P/12-SV(71) | |
Board to Board & Mezzanine Connectors HDR 120P W/POSTS SMT | FX11 |
| FX11LA-60S/6-SV(91) | |
Board to Board & Mezzanine Connectors 60P F RECEP SRT SMT GIDE POST GROUND PLT | FX11 |
| FX11LA-120P/12-SV(91) | |
Board to Board & Mezzanine Connectors 120P M HDR STRT SMT GIDE POST GROUND PLT | FX11 |
| FX11B-100P-SV | |
Board to Board & Mezzanine Connectors 100P STRT SMT RECEPT GROUND PLATE GOLD | FX11 |
| FX11LB-80P/8-SV(71) | |
Board to Board & Mezzanine Connectors HDR 80POS W/O POSTS SMT | FX11 |
| FX11B-100P/10-SV0.5(71) | |
Board to Board & Mezzanine Connectors 100P STRT SMT HEADER GROUND PLATE GOLD | FX11 |
| FX10A-96S-SV | |
Board to Board & Mezzanine Connectors REC 96POS W/POST SMT | FX10 |
