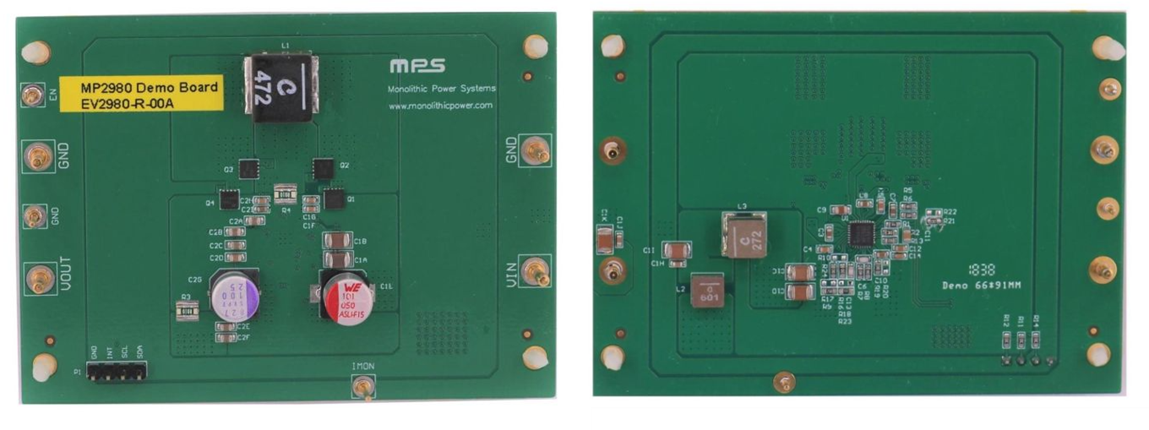

Monolithic Power Systems (MPS) EV2980-R-00A Evaluation Board is created to illustrate the capabilities of the MP2980. The MP2980 is a synchronous, four-switch buck-boost controller to support USB PD3.0 power solutions. The MPS MP2980 features hiccup OCP, hiccup OVP, programmable soft start, and programmable UVLO. The device is housed in a QFN-32 (4mm x 4mm) package.
Features
6V to 36V wide startup voltage range
Flexible I2C interface control for:
3V to 20V output with 10mV steps
Selectable VOUT slew rate
Programmable constant current limit
Output Current Monitor Function (IMON)
Switching frequency spread spectrum for EMI optimization
Integrated VOUT discharge function
Selectable 200kHz, 300kHz, 400kHz, and 600kHz switching frequency
Forced CCM operation mode
OCP, SCP, and OVP
Interrupt indicator for OCP, OVP, and PNG

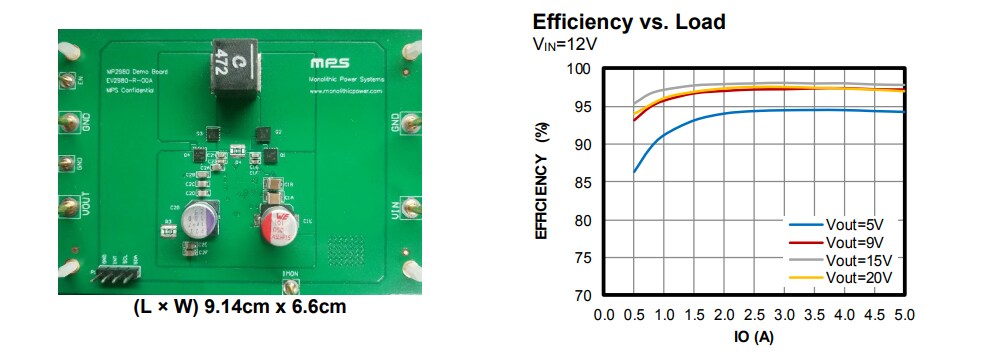

Available in a 9.14cm x 6.6cm size
Applications
USB power delivery
Industrial PC power supplies
Super-capacitor charging
