Molex Brad® M12 F-Coding Power Cordsets offer four times the power of standard M12 connectors. These cordsets feature an enhanced heat-dissipation design providing higher current carrying capabilities. The components deliver 300VAC/DC, 16A current, and are IP67 rated. The M12 F-Coding Power Cordsets provide compact, robust blindmating for ease of use in factory automation, industrial lighting, and commercial vehicle applications.
Features
300VAC/DC with up to 16.0A current per pin
F-Coding mating interface reduces the chance of the connector being mismated and ensures blind mate capability in hard-to-view installations
IP67 sealed interface provides a sealed connection that is ideal for use in harsh and wet industrial environments, the connector is dustproof and can be temporarily submerged in up to one meter of water
Pins enclosed in a contact carrier enhance finger safety by eliminating the chance of electrical shock due to exposed pins
Enhanced heat-dissipating design that dissipates heat more efficiently for higher current carrying capabilities in a compact design
Accommodates up to 14 AWG/2.5mm² wire size
Ideal for a wide range of power applications
Halogen-free and RoHS compliant by exemption
Applications
Factory automation
DC motors and drivers
24VDC auxiliary power distribution
Control systems
Value actuators
Industrial lighting
Compact LEDs
Conventional lighting fixtures
Commercial Vehicle (CV)
Telemetry modules
Control system power
On-board lighting power
Specifications
Materials
TPE body and insert
Nickel-plated brass coupling nut and receptacle shell
Copper alloy contacts
Gold over nickel plating
300VAC/DC maximum voltage
16.0A maximum current
1600V dielectric withstanding voltage
-20°C to +90°C operating temperature range

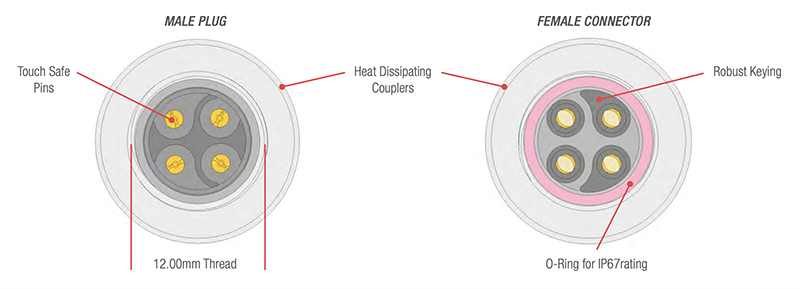

Cross Section
